Registration of testing results

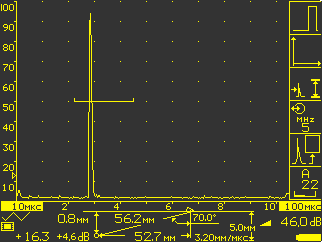

A-Scan (parameters)
Saving up 500 records of A-Scan or tuning parameters.

to top of page

Chord type probes

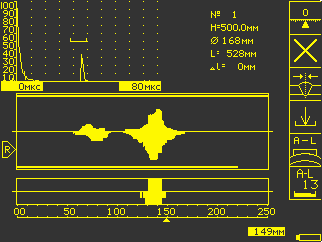

UD2-140 flaw detector: screen in А-L mode (signal amplitude saving with path sensor)

Maximal length of testing - 2954 mm (diameter 950 mm).
Auto scrolling if length is more 250 mm.
Saving up 45 records with maximal length.
Consecutive record of a portion from the right and left side of weld.

to top of page

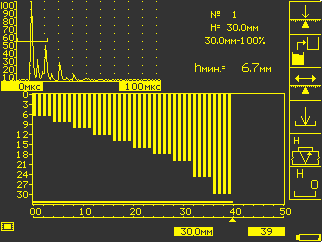

Registration of a relief structure

Saving minimal or current value of thickness.
Zooming of the bottom edge image of object.

Separate records


up 27000 records (45 portion with 600 points)

to top of page

Saving on timer

saving up 292 records
scanning time is
5-25 sec

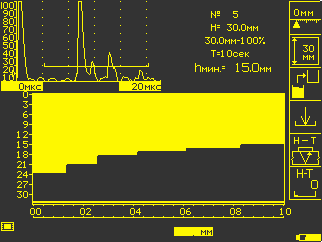

UD2-140: screen in H-T mode - saving coordinates of a relief structure on timer

to top of page

Saving on path sensor

saving up 45 portions
with length of 3000 mm

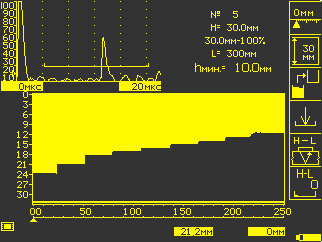

UD2-140 flaw detector: screen in Н-L mode - saving coordinates of a relief structure on path sensor

to top of page

B-Scan

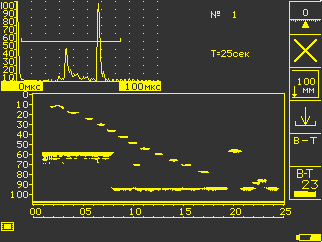

UD2-140 flaw detector: screen in B-Scan mode

to top of page

Scanning time is 5-25 sec.
Vertical zooming.
Zooming of written down image in a view mode is also possible.
